CNC Metal Laser Cutting Service

Reich Fab began as a production saw shop, and we proudly continue that legacy today. We have established ourselves as a reliable manufacturing partner, delivering high-quality production, short lead times, and exceptional customer service. Our CNC metal cutting service features a diverse range of high-speed, precision CNC metal cutting machines. Several factors influence the choice of the most suitable metal laser cutting method for a specific material. Rest assured, we have the perfect cutting solution tailored to your needs. With the capability to lift and move materials weighing up to 10,000 pounds and measuring up to 60 feet long, our equipment is designed for efficiency and effectiveness.

The Mechanics of CNC Laser Cutting

A laser beam consists of a single wavelength or color, forming a column of extremely high-intensity light. CO2 lasers typically emit infrared wavelengths, making them invisible to the human eye. The beam travels through the machine’s beam path with a diameter of approximately 3/4 of an inch from the laser resonator. Several mirrors, or “beam benders,” may be employed to ultimately focus the light onto the material. Before reaching the material, the laser beam passes through the nozzle’s bore, which may also allow compressed gases like oxygen or nitrogen to flow through. In the laser cutting head, a specialized lens or curved mirror is used to focus the laser beam effectively. For the focal point to be perfectly circular, consistent, and centered in the nozzle, careful focusing of the beam is essential. When concentrated into a single point, the heat density at that location becomes extremely high.

This high power density enables rapid heating, melting, and vaporization. When cutting mild steel, the laser beam can initiate a typical “oxy-fuel” burning process, with pure oxygen serving as the laser cutting gas, much like an oxy-fuel torch.

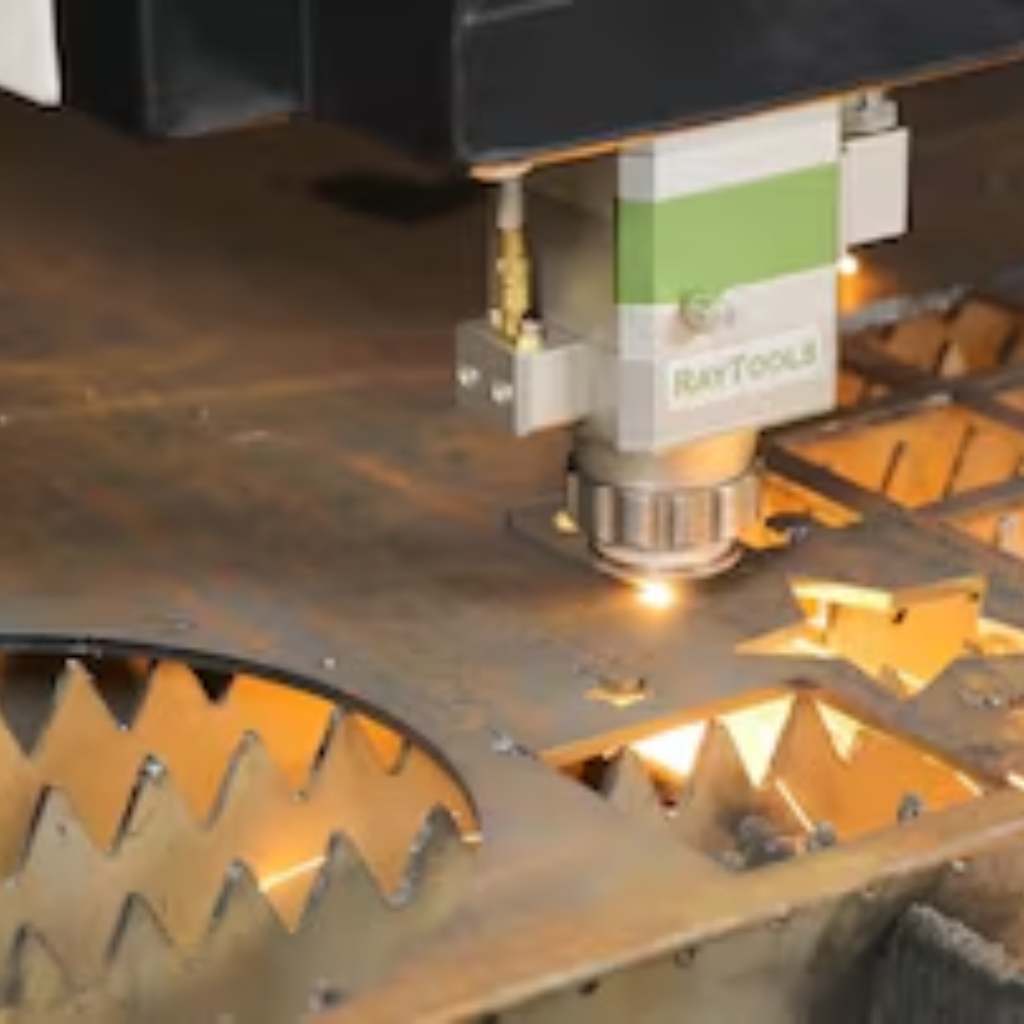

With our CNC laser cutter, the cutting head moves over the metal plate in the precise shape required to cut out the desired portion. Plates equipped with a capacitive height control mechanism ensure a highly accurate distance, which is crucial for determining the position of the focal point relative to the plate.

Despite the numerous variables that can influence cut quality, laser cutting remains a consistent, reliable, and highly precise process when all factors are properly controlled.

Reich Fab is a leading supplier of acoustic enclosures for diesel generators, designed to provide soundproofing and protection from noise pollution. Our soundproof acoustic enclosures for blowers are also perfect for vacuum cleaners and other industrial machinery.

Contact us for the best CNC Laser Cutting Service!

Reich Fab’s CNC laser cutting service is powered by a state-of-the-art 6000-watt laser, delivering high-quality laser-cut parts along with laser engraving. Our laser cutter can efficiently cut through thicker materials like aluminum, mild steel, and stainless steel on 60″ x 120″ dual pallet tables. In terms of precision, laser-cut metal parts outperform those produced by waterjet cutting.

A laser beam consists of a single wavelength or color, forming a column of extremely high-intensity light. CO2 lasers typically emit infrared wavelengths, making them invisible to the human eye. The beam travels through the machine’s beam path with a diameter of approximately 3/4 of an inch from the laser resonator. Several mirrors, or “beam benders,” may be employed to ultimately focus the light onto the material. Before reaching the material, the laser beam passes through the nozzle’s bore, which may also allow compressed gases like oxygen or nitrogen to flow through.

In the laser cutting head, a specialized lens or curved mirror is used to focus the laser beam effectively. For the focal point to be perfectly circular, consistent, and centered in the nozzle, careful focusing of the beam is essential. When concentrated into a single point, the heat density at that location becomes extremely high.

This high power density enables rapid heating, melting, and vaporization. When cutting mild steel, the laser beam can initiate a typical “oxy-fuel” burning process, with pure oxygen serving as the laser cutting gas, much like an oxy-fuel torch.

With our CNC laser cutter, the cutting head moves over the metal plate in the precise shape required to cut out the desired portion. Plates equipped with a capacitive height control mechanism ensure a highly accurate distance, which is crucial for determining the position of the focal point relative to the plate.

Despite the numerous variables that can influence cut quality, laser cutting remains a consistent, reliable, and highly precise process when all factors are properly controlled.

Reich Fab is a leading supplier of acoustic enclosures for diesel generators, designed to provide soundproofing and protection from noise pollution. Our soundproof acoustic enclosures for blowers are also perfect for vacuum cleaners and other industrial machinery.

Contact us for the best CNC Laser Cutting Service!

Reich Fab’s CNC laser cutting service is powered by a state-of-the-art 6000-watt laser, delivering high-quality laser-cut parts along with laser engraving. Our laser cutter can efficiently cut through thicker materials like aluminum, mild steel, and stainless steel on 60″ x 120″ dual pallet tables. In terms of precision, laser-cut metal parts outperform those produced by waterjet cutting.

Specifications:

  • Max Cut Size: 3000mm x 1500mm
  • Mild Steel: Up to 20mm Thick
  • Stainless Steel: Up to 12mm Thick
  • Aluminum: Up to 8mm Thick

Our advanced CAD/CAM system allows for quick and accurate programming of components, ensuring no delays before or during production. We accept CAD drawings via email in AutoCAD, DXF, and DWG formats.

CNC Metal Laser Cutting: Automation, Accuracy, and Cost Savings

If you’re looking for a technology that can help you cut metal pieces with precision and consistency, CNC metal laser cutting is the ideal choice. This technology utilizes a computer numerical control (CNC) system in conjunction with a focused laser beam to heat and melt the metal into the exact required shape.
